SMC
Specifications
| Temp Range | -65~+165°C (PE Cable -40~+85°C) |
|---|---|
| Vibration | MIL-STD-202,Method 213 |
| Impedance | 50Ω |
| Frequency Range | DC~10GHz(Semi-Flexible 0~18GHz) |
| Working Voltage | 335V Max |
| Withstand Voltage | 1000V RMS |
| Insertion Lost | ≤0.15 dB@6GHz |
| Insulation Resistance | 5000 MΩ |
| Durability(mating) | ≥500cycles |
Contact Resistance
| Center Contact | ≤6MΩ |
|---|---|
| Outer Contact | ≤1MΩ |
VSWR
| Straight |
|
|---|---|
| Right Angle |
|

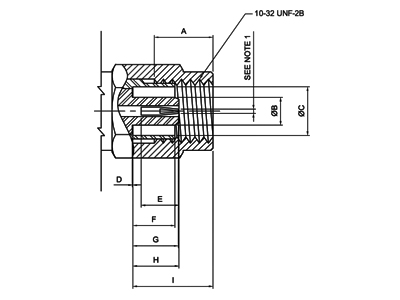

SMC Male
| Letter | Minimum | Maximum |
|---|---|---|
| A | 2.79 | - |
| B | - | 2.06 |
| C | 3.37 | 3.81 |
| D | 0.00 | - |
| E | 2.97 | - |
| F | - | 3.10 |
| G | - | 3.40 |
| H | - | 3.40 |
| I | - | 5.92 |
SMC Female
| Letter | Minimum | Maximum |
|---|---|---|
| A | 5.94 | - |
| B | 3.12 | 3.38 |
| C | - | 2.13 |
| D | - | 0.25 |
| E | 0.48 | 0.53 |
| F | 2.08 | - |
| G | - | 3.71 |
| H | 0.00 | 0.00 |
| I | 0.61 | - |
| J | 3.40 | 3.66 |
| K | 3.40 | - |
MATERIAL & PLATING
| Shell | Brass, Gold Plated |
|---|---|
| Contact Pin | Brass, Gold Plated |
| Socket | Beryllium, Gold Plated |
| Insulator | PTFE |
| Crimping Suite | Copper Alloy, Nickel or Gold Plated |
| O-ring Sealing | Silastic |
