Specifications
| Temp Range | -40~+60°C (PE Cable -40~+85°C) |
|---|---|
| Vibration | MIL-STD-202,Method 213 |
| Impedance | 75Ω |
| Frequency Range | DC~1GHz |
| Working Voltage | 170V Max |
| Withstand Voltage | 500V RMS |
| Insertion Lost | ≤0.15 dB@6GHz |
| Insulation Resistance | 1000 MΩ |
| Durability(mating) | ≥500cycles |
Contact Resistance
| Center Contact | ≤10MΩ |
|---|---|
| Outer Contact | ≤5MΩ |
VSWR
| Straight |
|
|---|---|
| Right Angle |
|

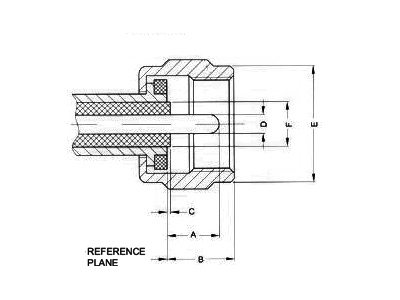

F Male
| Letter | Minimum | Maximum |
|---|---|---|
| A | 4.95 | 6.86 |
| B | - | 7.29 |
| C | - | 0.25 |
| D | 0.51 | 1.63 |
| E | - | 12.95 |
| F | - | 3.80 |

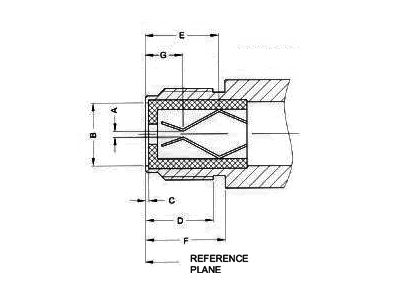

F Female
| Letter | Minimum | Maximum |
|---|---|---|
| A | 0.51 | 1.63 |
| B | 3.86 | - |
| C | 0.30 | - |
| D | 5.56 | - |
| E | 7.00 | - |
| F | 7.59 | - |
| G | - | 4.7 |
MATERIAL & PLATING
| Shell | Brass, Nickel Plated |
|---|---|
| Contact Pin | Brass, Gold or Silver Plated |
| Socket | Beryllium, Gold or Silver Plated |
| Insulator | PTFE |
| Crimping Suite | Copper Alloy, Nickel or Gold Plated |
| O-ring Sealing | Silastic |
